Terrestrial 3D laser scanner

3D Laser Scanners – Z+F IMAGER® Series

The phase-based terrestrial 3D laser scanners from the Z+F IMAGER® Series by Zoller + Fröhlich are ideal for applications requiring the highest measurement accuracy and ranges of up to 365 meters. These 3D laser scanners impress with their precise data quality and outstanding reliability. Even in extreme environments – whether underground, in desert regions, at accident sites, or on oil platforms – the Z+F 3D laser scanners consistently deliver exact measurement results.



Efficiency and Flexibility with the Z+F IMAGER® Series

The 3D laser scanners of the Z+F IMAGER® Series offer a wide range of performance options tailored to the specific requirements of different applications. The models vary in speed, range, adjustment options, and features, but all share the same high level of measurement accuracy and data quality.

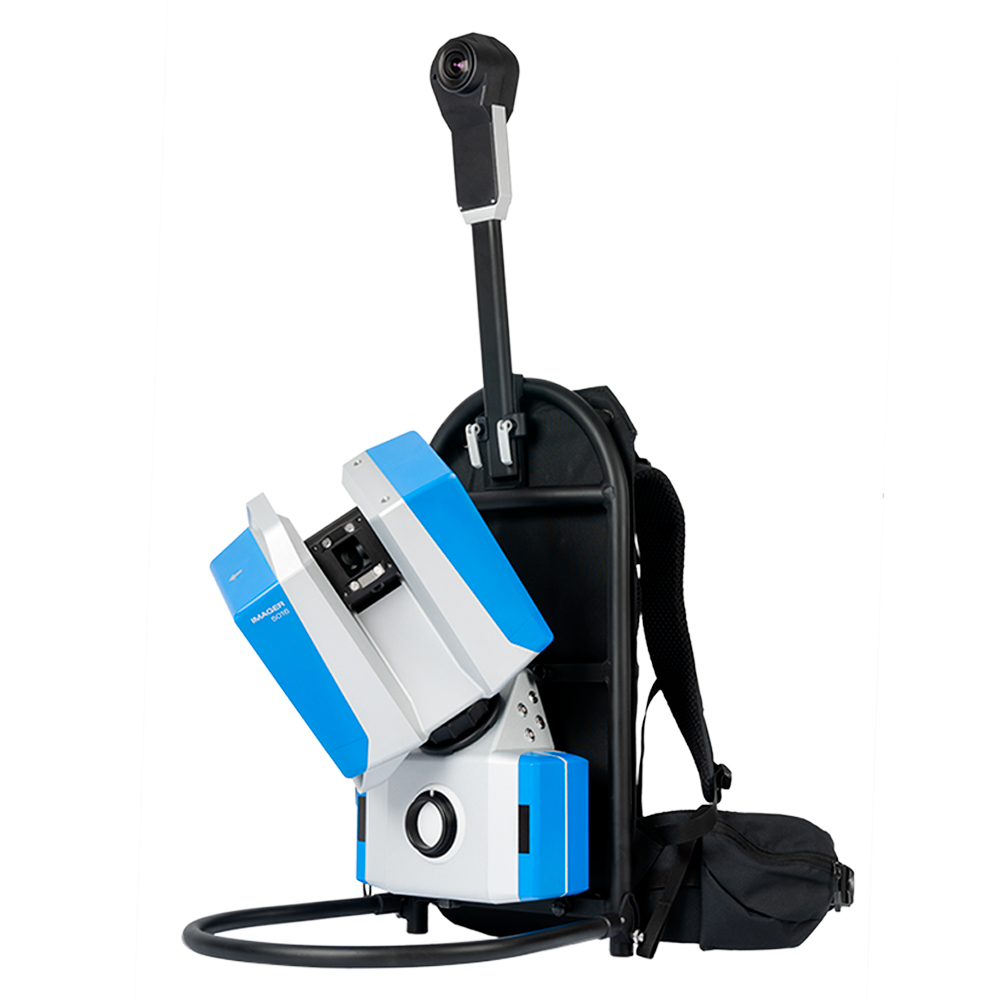

Mobile Scanning with Z+F FlexScan® 22

A key feature is the seamless integration of the IMAGER 5016 series and higher models into the blue workflow®, in combination with the Z+F FlexScan® 22. This mobile surveying system delivers precise results in mobile scanning and can be deployed on various carrier systems. Its project-adaptive operation allows the system to be fine-tuned to specific project requirements, significantly saving time and resources. Additionally, it supports efficient planning and cost control.

Alles
3D laser scanner
Laserscanning software
Accessories
Z+F FlexScan 22
Z+F IMAGER® 5024S - 3D laser scanner
Z+F IMAGER® 5024A - 3D laser scanner
Z+F IMAGER® 5024E - 3D laser scanner
Z+F IMAGER® 5016A - terrestrial laser scanner
Z+F IMAGER® 5016 - terrestrial laser scanner
Z+F IMAGER® 5006EX - terrestrial laser scanner
Z+F LaserControl® - laserscanning software
Z+F SynCaT® - mobile mapping software
Clear Edge - EdgeWise®
Gexcel - JRC 3D Reconstructor®
Technet - Scantra®
Z+F TopCam - laser scanner accessories
Z+F T-Cam - laser scanner accessories

Product range

Z+F IMAGER® 5024 Supreme

2.2 MHz / HDR camera / range 365m

3D laser scanner

Z+F FlexScan® 22

Tracking system / cameras / SLAM platform

SLAM platform

Z+F IMAGER® 5016A

2 million points per second / HDR camera / range 360m

3D laser scanner

Z+F IMAGER® 5006EX

Explosion-proof / range 79m

3D laser scanner
